Product Features:

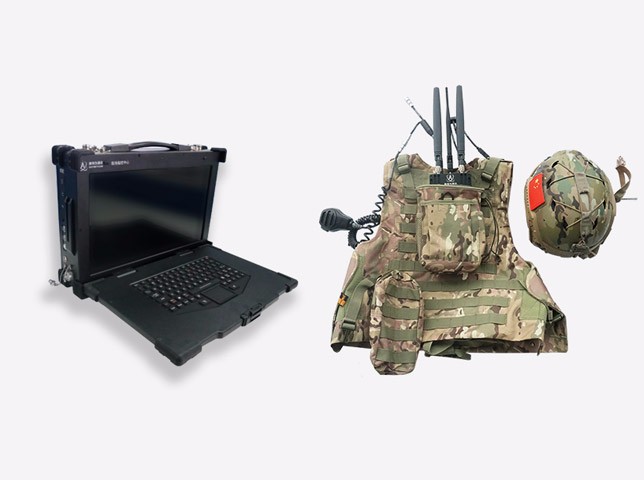

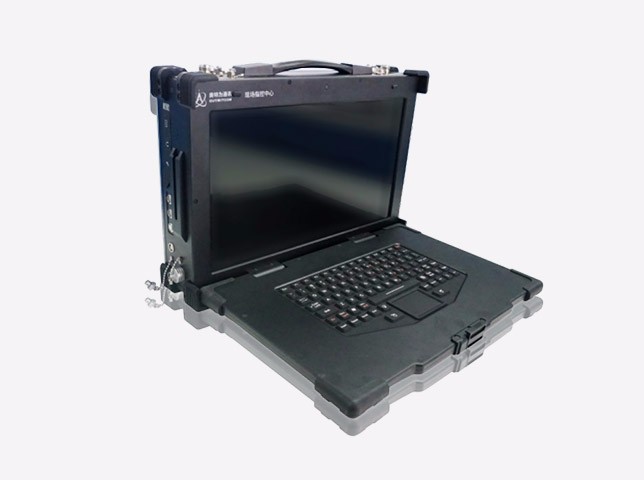

QD2000 is a box-type multimedia terminal that supports multiple devices and applications. Its main application is a portable accusation system based on the wireless ad hoc network equipment platform. This system is a scaled-down version of the accusation management system, which simplifies the replication configuration of the accusation management system and integrates the small accusation system of the on-site server and the accusation server. Only one software is needed, which can realize functions such as GIS system and video monitoring. The GIS system uses map resources to obtain the location information of the device in real time from the map, and supports mapping and other functions. Video surveillance can view video information on the 4th and 9th screens, and play the specified video in full screen. Users can comprehensively manage devices through a portable allegation platform. You can choose to plug and unplug multiple types of self-organizing network modules.
Typical configuration:
Intel i7-6700 processor, 16G DDR4 memory; 17-inch wide-band display, extended to provide better accusation vision for three displays; 2T solid state drive (expandable); built-in 220WH 铿 battery, support more than 4 hours of battery life; IP65 waterproof Dustproof; standard silicone keyboard and touchpad; 500W pixel camera.
Communication configuration:
Provides dual self-assembled network antennas with a maximum transmit power of 2W; dual WIFI antennas provide wireless access capability; built-in Beidou/GPS module.
Main functional indicators:
1, stability
The system can run stably for 7*24 hours, and the CPU usage and memory usage are relatively stable during the running process.
2, time characteristics
The system refreshes the GPS information, topology information and posture information of the self-organizing network device every 1 s. satisfy the needs of clients.
3, the number of concurrent
This system supports the management of >1000 self-organizing network devices.
Host parameter
Serial number
Category
Specification
1
C P U
Intel® CoreTM i7-6700T, quad core, 2.8GH
2
RAM
16G, DDR4
3
camera
500W pixel HD camera
4
monitor
17.3吋 widescreen, resolution 1920*×1080
5
Storage
2T solid state 2.5 吋 hard disk (1+1)
6
Side interface
DC24V (air insertion)
Network port *2 (air socket)
USB*4 (air plug)
Internal integrated self-organizing network board (customer supply)
Top N-type antenna head *2, SMA*3, waterproof
7
Keyboard
Silicone keyboard, touch mouse
lithium battery
220WH 18650 lithium battery (lifetime 4-6 hours)
12
charger
DC 24V/5A power adapter
13
Protection level
The whole machine IP65 waterproof fan heat dissipation (fan is easy to replace)
14
System
WIN7 64 bit
Physical parameter
Serial number
Technical indicators
specification
1
Structure
Portable reinforcement
2
Volume (mm)
Approx. 450 (D) X 230 (W) X 350 (H) (without rubber mat)
3
weight
About 10KG
4
colour
Black, subject to swatch confirmation
5
package
Aviation trolley case
