Product Features:

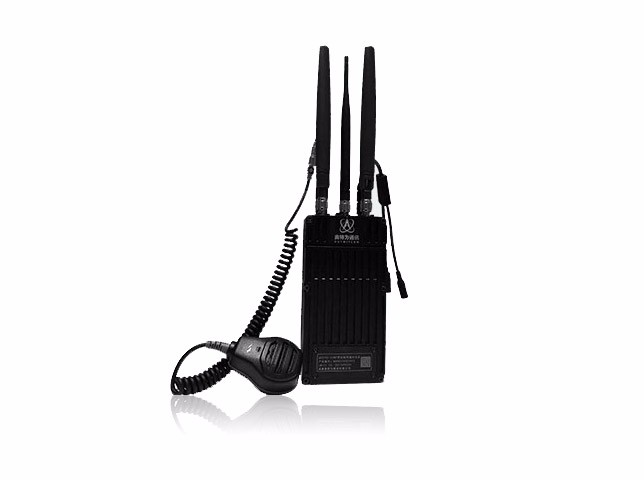

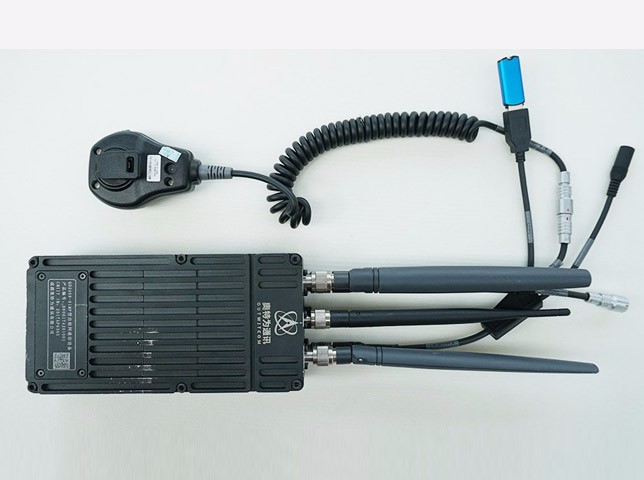

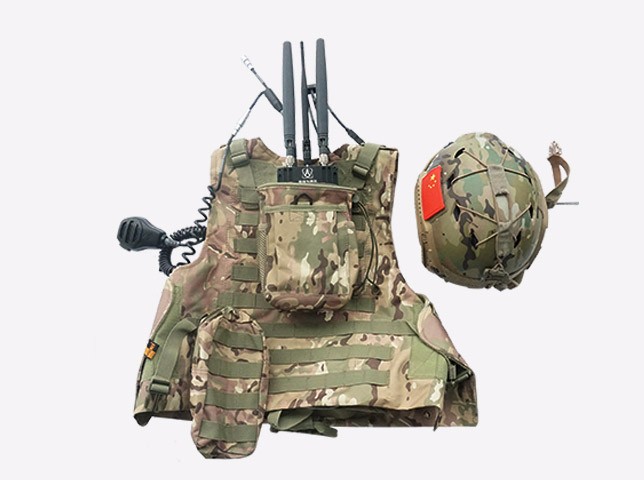

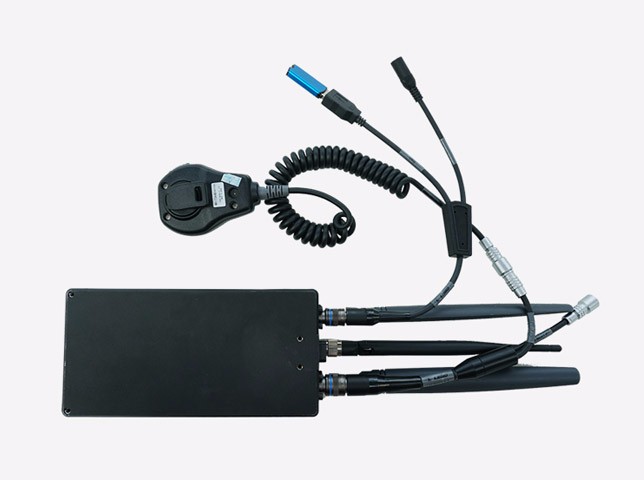

QD0558-R5MP is a general outdoor general-purpose self-organizing network soldier equipment. The operating frequency of the self-organizing network is 512 to 582 MHz, and the operating frequency of the WiFi AP is 2.4/5.8 GHz. The maximum transmission power of the self-organizing network is 500mW, which can complete outdoor long-distance wireless transmission of video, image, voice and data. The typical transmission capacity is 8Mbps@2km.

characteristic

index

Index value

Technical characteristics

working frequency

512~582MHz /5.8G

Maximum transmit power

500mW

Wireless standard

802.11a/b/g/n

Physical bandwidth

5MHz/10MHz/20MHz/40MHz

Access method

CSMA/CA

Transmit power

0-27dBm

Sensitivity

Minimum -96dBm

Single hop transmission rate

>80Mbps

Single hop transmission delay

<1ms

Maximum number of hops between nodes

20 jumps

Networking time

<5s

Number of nodes

50

Optional upstream path

>3

Dynamic WAN routing negotiation

stand by

Node roaming into the network

stand by

Network layer QoS

RSVP, Diffserv

Security authentication and encryption

Web/MD5/802.1x/WPA

/Radius/MAC/USB KEY/x.509/Packet Filtering

Management ability

SSH, HTTP, SNMPv1/v2/v3

Number of access users

>50

interface

wireless

2x omnidirectional antenna

wired

100Base-T Ethernet interface X2

Video interface

HDMI HD

Physical characteristics

size

10*15*7cm

weight

0.6kg

Power consumption

15w

Protection level

IP66
