Large-Scale AMP system (UAS) is an advanced modular double-engine, multi-role medium altitude long endurance (MALE) UAV system. It is first domestic turboprop powered large UAV system in China, and is capable of fully autonomous horizontal wheel takeoff/landing and flight, with its max endurance of 20 hours. It can carry SATCOM and a variety of high performance sensors for BLOS missions. It is widely used for diversified missions such as surveillance and patrol, relief and rescue, material delivery, communication relay, law enforcement, logistics transportation, survey and mapping and scientific experiments in both air-to-sea and air-to-ground applications.

UAS is mainly composed of:

a)UAV platform;

b)Payload equipment;

c)Ground Control Station (GCS)

d)Integrated Logistic (Support) System (ILS)

Figure UAS Composition

Ground Control Station is mainly composed of:

a)1 command control station (CCS) (LOSGDT is integrated inside and independent LOS data link station can be configured as per user’s requirement.);

b)1 SATCOM (data link) ground data terminal (SATCOMGDT);

c)1 differential global navigation satellite station (DGNSS);

d)Remote video terminal (RVT) (optional);

e)1 information processing station (IPS) (optional);

f)Training simulator (TS) (optional).

Composition manner is shown in following Figure:

Figure Schematic Diagram of GCS Composition

ILS system mainly includes maintenance, training, after-sales support and information-based support.

Three view diagram of UAV is shown in the following figure, and the main geometric parameters are as follows:

Table  Geometric Dimensions of UAS

Figure Three View Diagram of UAS

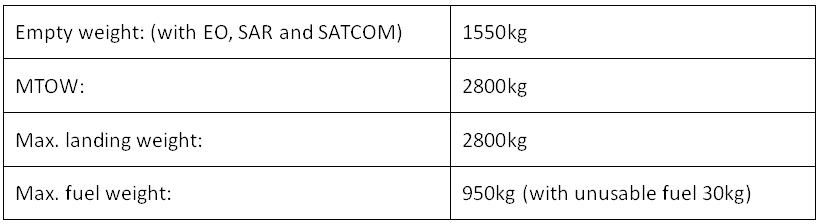

Table  Weight Parameters of UAS
