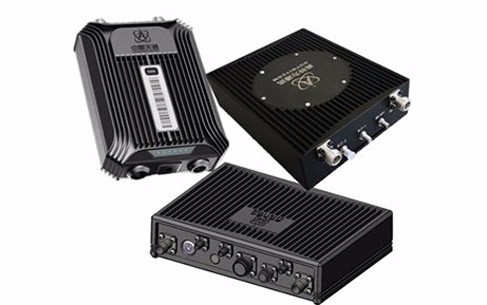

Mobile wireless ad hoc network device

Location: HomeNewsGroup dynamics

Date：

2018-12-13

Views：

The company offers a wide range of products to meet different business scenarios and different platform requirements:

1. According to the networking frequency, there are three shelf product sequences as follows:

Typical model

Self-organizing frequency band

User access method

Applicable scene

QD2458-01

5.8 GHz band

Wi-Fi/network cable/USB/HDMI (video)

Medium and long distance, large bandwidth wireless communication, used for wireless community, smart city construction.

QD1458-02

1.4GHz band

Medium and long distance, large bandwidth wireless communication, used for wireless community, smart city construction.

QD0558-01

600MHz band

It has the comprehensive advantages of communication bandwidth, coverage distance and non-line of sight. It has wide application and good versatility. Meet the needs of broadband communications such as the armed police public security.

2. According to the platform of the self-organizing network equipment, there are multiple product sequences as follows (take the QD1458 product sequence as an example)

model

Types of

Description

QD1458-01UAV

Small drone type

Built-in wireless ad hoc network, Beidou/GPS, self-contained battery, providing air relay, wireless coverage, etc., aerial surveillance and surveillance information directly to the ground cover sharing

QD1458-01MP

Individual soldier

Built-in Beidou/GPS, WIFI, based on embedded electronic compass, gyroscope sensing device (user) motion state, built-in 66WH battery, support 6 to 8 hours working time, provide external HDMI high-definition video access module, DMR digital voice Intercom, IP-based high-definition camera, high-definition intercom microphone, individual information terminal (reinforced large-screen mobile phone), etc.

QD1458-02

Universal

Outdoor general-purpose and enhanced coverage universal type, embedded Beidou/GPS, WIFI and other capabilities, optional LTE backhaul module, can adapt to a variety of antennas, rich external interfaces, rich options, access to the network through wired and wireless It is applicable to a variety of installation carriers such as the ground, inside and outside the building, vehicles and ships, etc., to meet the requirements of the applicability of the environment such as plateau, alpine, extreme temperature, seawater corrosion, sand dust, flooding and rain.

QD1458-02INT

Integrated backbone

By integrating the fan-oriented high-gain antenna combination, power amplifier, power splitter, and self-organizing network module into one housing, the network erection efficiency is greatly improved, and WIFI coverage, GPS/Beidou, LTE public are also integrated inside. The ability of the private network communication terminal and the digital cluster to change the transmission capability for the large-capacity long-distance backhaul of the field network or the return of the public communication network.

QD1458-02COM

Integrated accusation

The fan-oriented high-gain antenna combination, power amplifier, power splitter, and self-organizing network module are integrated into one housing, which greatly improves the network erection efficiency, and also integrates WIFI coverage, GPS/Beidou, LTE public. The ability of the private network communication terminal and the digital cluster to change the transmission capability for the large-capacity long-distance backhaul of the field network or the return of the public communication network.

The company's wireless ad hoc network products have comprehensive multi-field application applicability:

Ø Frequency range: covering 200MHz to 6GHz, low-frequency non-line-of-sight communication capability, high-frequency broadband performance;

Ø Transmit power: from 100mW, tens of watts to more transmit power can be provided; provide ground-to-basement penetration capability, ground-to-high-floor coverage capability, urban non-line-of-sight communication capability; line-of-sight video communication over 10km ;

Ø Environmental adaptation: According to the requirements of the military standard 367A military wireless communication equipment, it is resistant to extreme weather and salt spray seawater corrosion;

Ø Mobile communication: on-board or in-vehicle self-organizing network nodes can still provide broadband video communication services under high-speed mobile conditions;

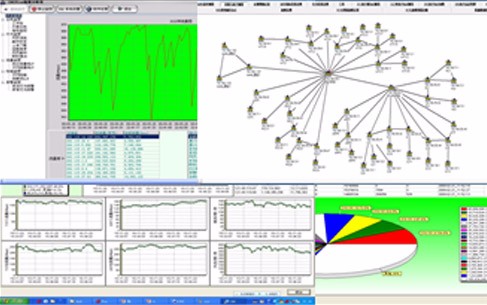

Ø Accessories: The application terminal software, accusation software, and data center software can be provided; the external power amplifier transceiver unit can expand the transmission power range, diversify the antenna and power supply solutions to meet indoor and outdoor, high altitude, alpine, mountainous, Desert application needs.

Basic product capabilities:

Indicator item

Index value

Single hop maximum transmission rate

Technology

Operation

special

Sex

working frequency

200MHz to 6GHz custom

Single hop transmission delay

Transmit power
